theion’s Crystal Battery: Co-created with mother nature.
With superior performance and sustainability it’s the near future’s mobile and stationary batteries: for renewable energies, smartphones and computers, cars and airplanes.
theion will power all mobile and stationary applications
Mobile devices and wearables
First samples available: 2024
- Usage 2 days+
- Sustainability
- Volume + scale
Battery powered rocket pump
First samples available: 2024
- Increased payload
- Increased revenue/flight
- Volume + weight
eVTOL passenger aircraft
First samples available: 2024
- Flight time 4h+
- Increased range
- Increased payload
- High safety
- Weight
Renewable energy storage
First samples available: 2024
- Sodium Sulfur battery cells are a sustainable energy storage solution for renewable energies
- The battery cells utilize abundant electrode materials, Sodium and Sulfur
Electric passenger aircraft
First samples available: 2025
- Flight time 2h+
- Increased range
- Increased payload
- High safety
- Weight
Electric land vehicles
First samples available: 2025
- Range 1000 km+
- Fast charge < 10 min
- Sustainability
- Volume + weight + scale

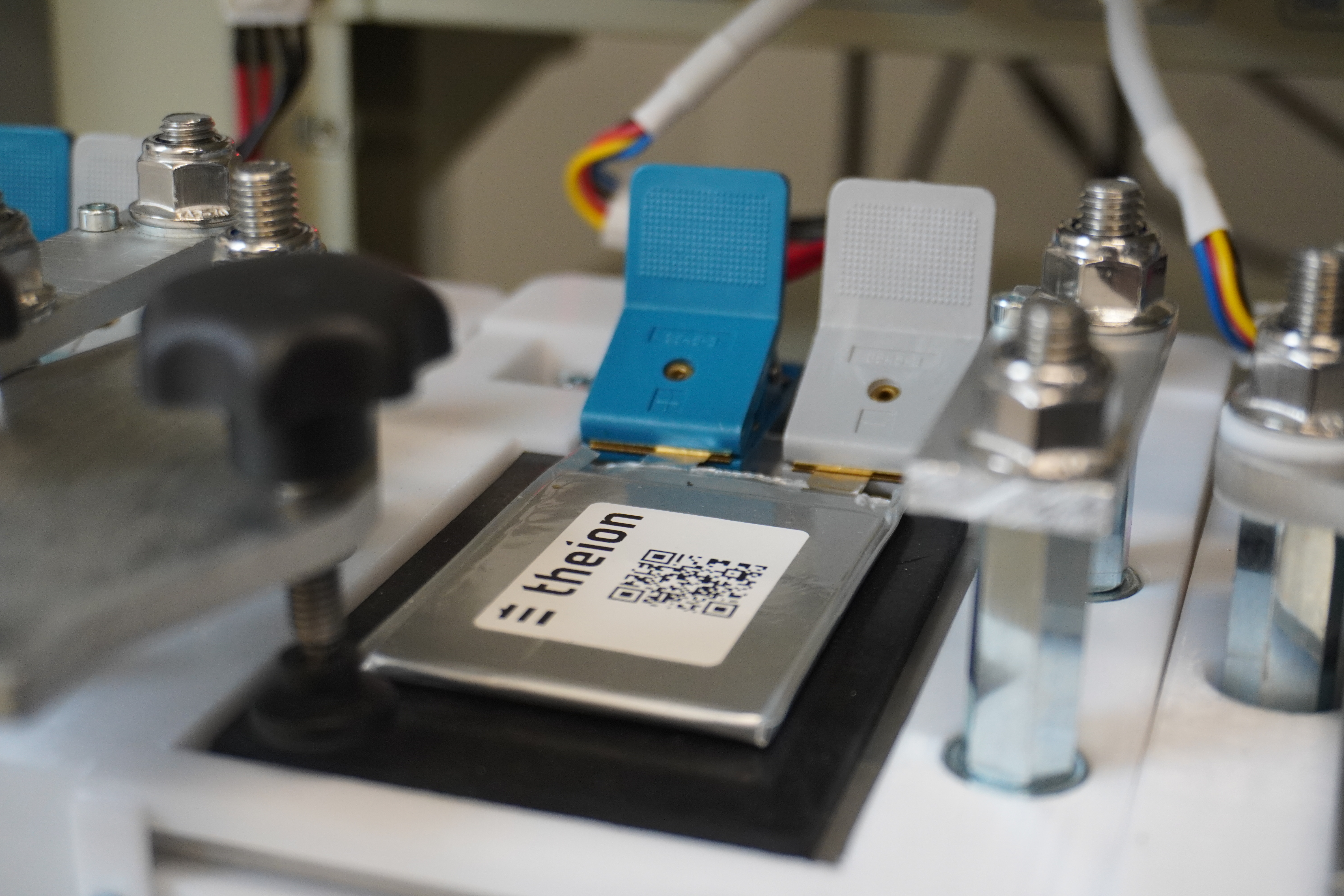

The theion Crystal Battery
High capacity: up to triple gravimetric and volumetric energy density in Lithium Sulfur batteries
Long cycle life: cyclability of Lithium Sulfur and Sodium Sulfur brought to standard levels
Fast charging: intrinsic high C-rate for charging within minutes
High safety: no inflammable components
Highly sustainable: no Cobalt, no Nickel, no solvents, no harmful mining of Sulfur
Low material cost: Sulfur cost at 1 % of NMC811 cost
Low energy consumption: new production processes require only 10 % of energy
Low cell price: cell and process design drives cost down
theion Crystal Battery – for a wireless, mobile, sustainable storage of renewable energy.
Sustainability
Sulfur is an industrial byproduct – no harmful mining required. This drives material cost down to 0.20 EUR/kg (compared to state of the art cathode material NMC811 at >20.00 EUR/kg).
Todays battery factories require lots of energy. theion aims to save 90 % of energy at production.
The crystal battery is designed for recyclability and thus easy, safe and cheap to recycle. Sustainability goes hand in hand with affordability.
Product safety – theion’s Crystal Battery chemistry and production processes are designed for non flammability: Thermal runaway is impossible.
We can’t wait to deliver - The world is about to be electrified and needs sustainable solutions
Our product roadmap for first customer samples:
2024 - “Space”
2024 - "Stationary storage"
2024 - “Portables + Wearables”
2025 - "Electric flight"
2025 - “Automotive”
2024 - "Stationary storage"
2024 - “Portables + Wearables”
2025 - "Electric flight"
2025 - “Automotive”
Our equipment roadmap for sampling and mass production:
2022 - kWh Manual Lab Samples
2023 - MWh Semi-Automatic Lab Line
2026 - GWh Small Scale Production Line
2028 - XL-Scale Production Lines
2023 - MWh Semi-Automatic Lab Line
2026 - GWh Small Scale Production Line
2028 - XL-Scale Production Lines
For experts: theion Sulfur Crystal Wafer at a glance
We are growing a pure Sulfur wafer by our Direct Crystal Imprinting (DCi) method (no slurry coating, no solvents, no water, no drying) directly from molten Sulfur in a few seconds. Because of the flexibility of the process, we can grow any geometrical shape of wafer, and therefore adapted to the customers product shape, yet we suggest a hexagonal shape for space-efficiency reasons.
Read more
We removed nearly all volumetric fluctuation of sulfur at wafer level by a special conversion process. So, our cathode is able to work at low porosity. By adding conductive paths, we use at maximum the active material which is equivalent to a high energy density.
In the voids of our Sulfur wafer operates a proprietary solid-state polymer electrolyte. In our Gen 1 and Gen 2 Crystal cell, we use lithium metal foil as anode. Further anode designs are in our Technology Roadmap (Gen 1 to Gen 4). Our battery technology is compatible with bipolar cell arrangement to maximize energy and power content for such cells.
The cell stack is then assembled into a housing which fits geometrically best the customer’s application to maximize module-pack-system energy content.
Targeted performances are:
Gravimetric energy density ≥ 1’000 Wh/kg (Gen 4)
Volumetric energy density ≥ 1’500 Wh/l
Power capability ≈ 12.000 W/kg
Cycle life ≥ 1’000 at 1 C
Operational temperature -20 °C to 60 °C
Production energy consumption from raw material to finished cell: 15 kWh el/1 kWh c
Volumetric energy density ≥ 1’500 Wh/l
Power capability ≈ 12.000 W/kg
Cycle life ≥ 1’000 at 1 C
Operational temperature -20 °C to 60 °C
Production energy consumption from raw material to finished cell: 15 kWh el/1 kWh c
